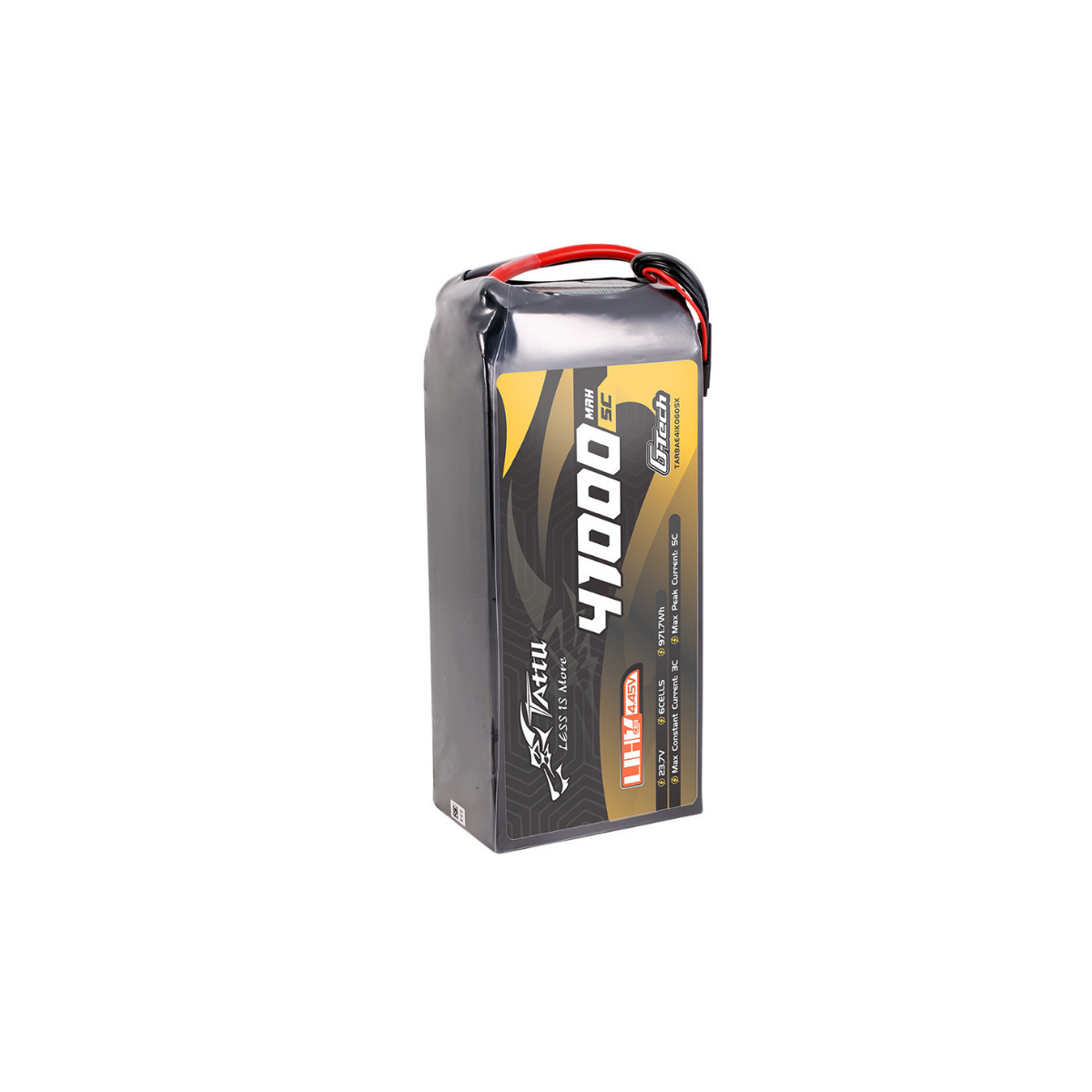

Tattu Ultra High Voltage 41000mAh 5C 23.7V 6S1P G-Tech Lipo Battery with QS8 Plug

Tattu Ultra High Voltage Battery is an advanced ultra-high-voltage LiPo battery featuring high energy density. With a full charge voltage of 4.45V per cell, it utilizes advanced graphite anode technology to deliver exceptional performance. This battery is perfect for applications that require both high capacity and power output, such as industrial drones used in surveying, delivery, and inspection etc.

Battery Specifications:

• Capacity: 41000mAh
• Voltage: 23.7V/6S
• Max Constant Current：60A
• Max Peak Current: 100A (≤3S)
• Net Weight(±20g): 3790g
• Size: 230x104x70mm
• Discharge Connector Type: QS8
• Balancer Connector Type: G-Tech-7P
• Discharge Wire: 8# 150mm
• Charge Wire: 22# 75mm

Technical Features:

1. High Energy Density: 280Wh/kg
2. High Voltage: 4.45V/cell
3. Safety Performance: Voltage range of 4.45V to 3.0V per cell when the State of Charge (SOC) is from 100% to 0%.
4. Cycle Life of Pack: 500+ cycles, with 80% of the initial capacity retained after those cycles.
5. G-Tech Functionality: The battery supports the G-Tech function with the Tattu TA1000 1000W charger. It includes automatic current allocation, enhancing charging efficiency and battery management.

These features suggest a battery designed for high-performance applications, such as drones, electric vehicles, or other advanced electronics. If you have any specific questions or need further details, feel free to ask!

Recommended Charger:

Tattu matching charger: TA1000 / TA3200UHV
