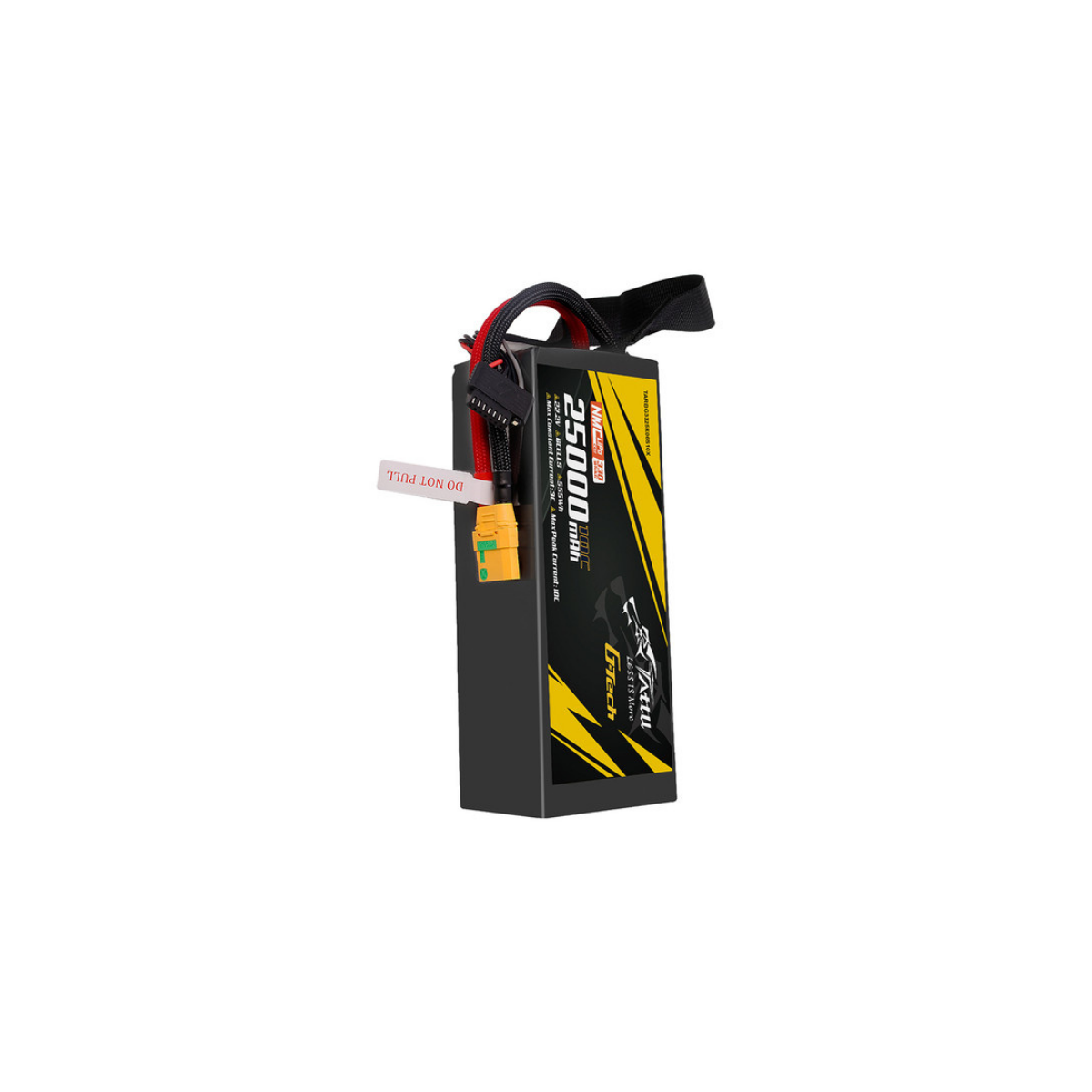

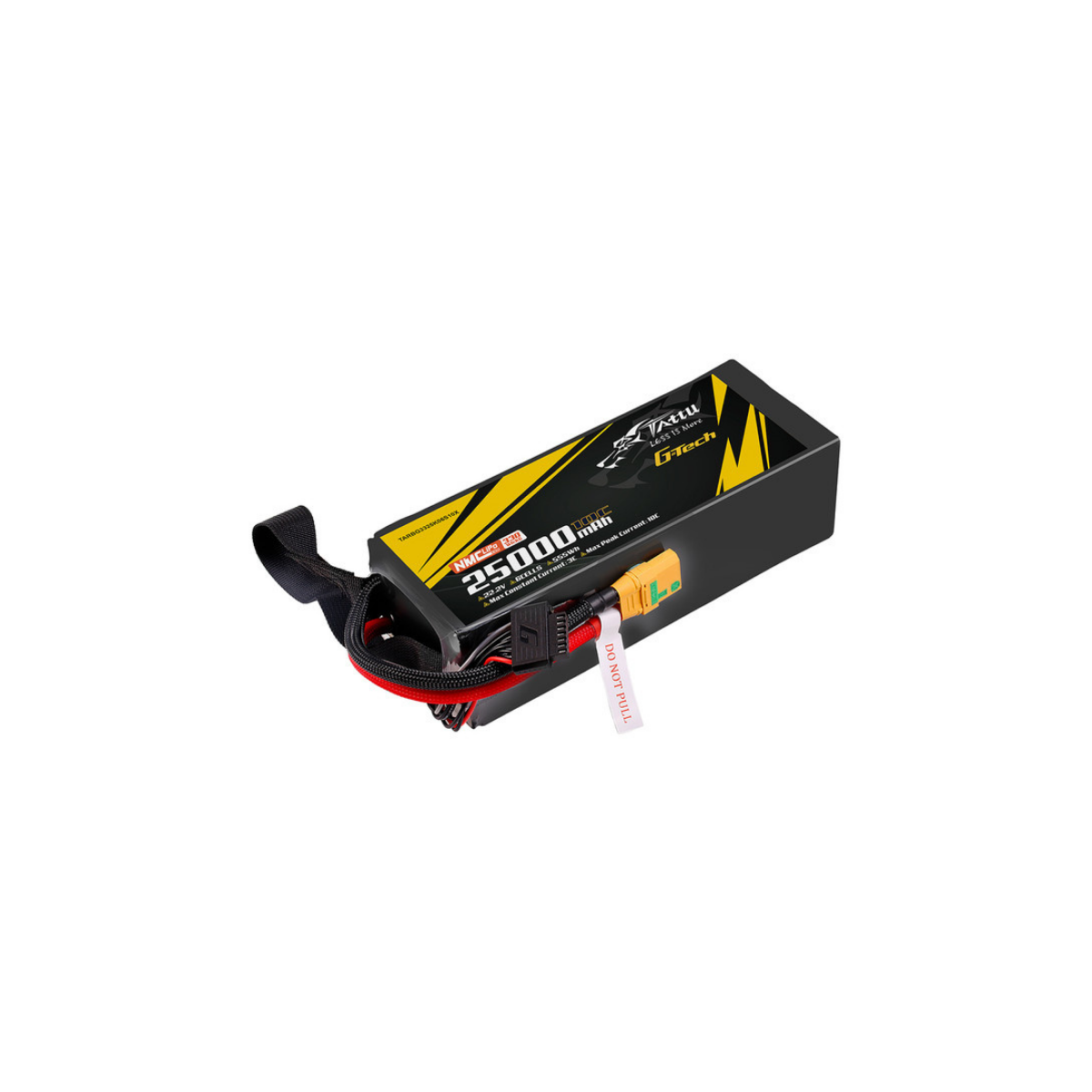

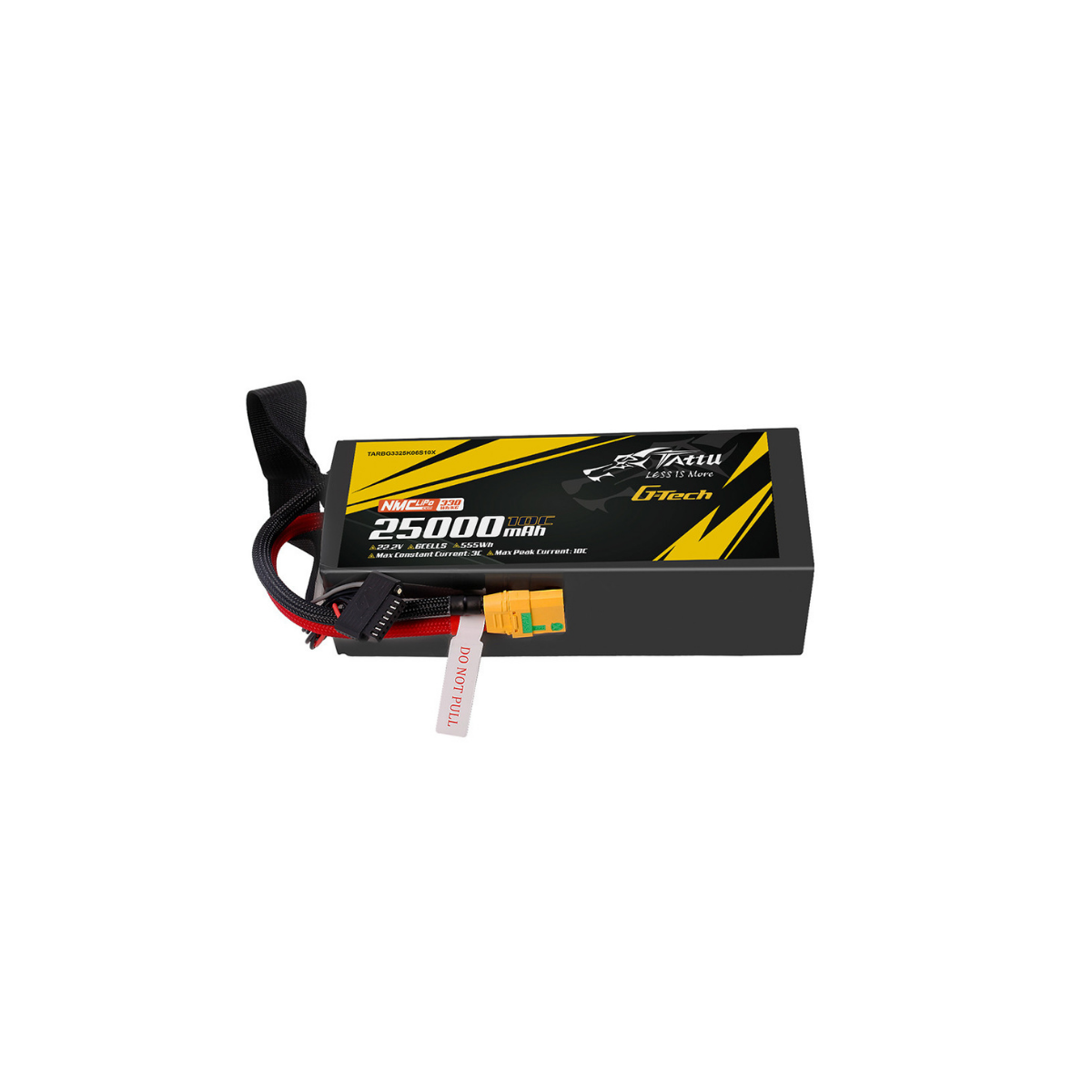

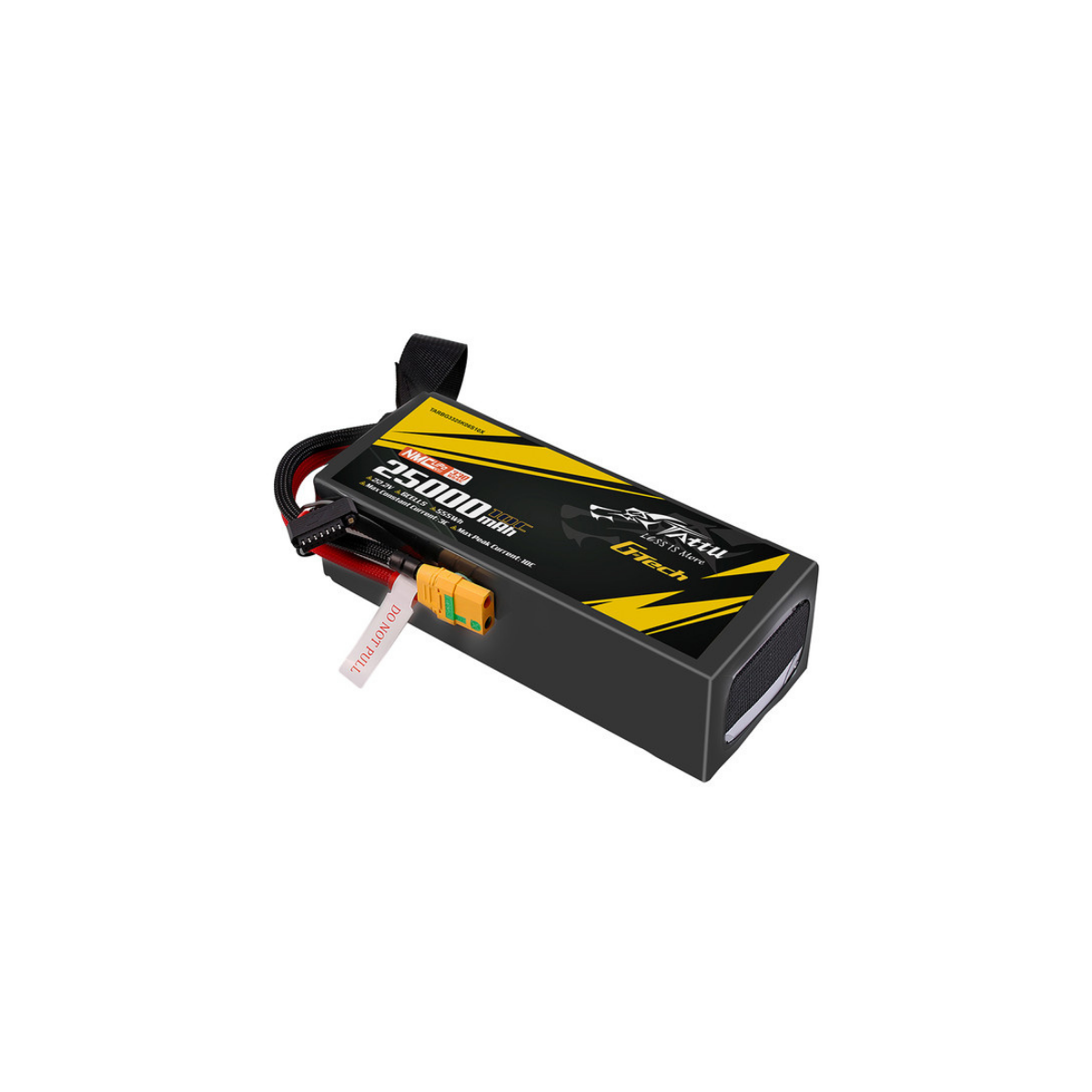

Tattu Semi-solid State 330Wh/kg 25000mAh 10C 22.2V 6S1P G-Tech Lipo Battery Pack with XT90-S plug

The Tattu Semi-solid state 330Wh/kg 25000mAh 22.2V 10C 6S1P G-Tech Lipo Battery is a revolutionary semi-solid lithium battery, featuring high energy density and long service life.

Compared with traditional lithium batteries, Tattu Semi-solid State battery has a higher energy and lighter weight, can increase the battery endurance by 30% and cycle life more than of 500 (90% initial capacity). It is an ideal power solution for various industrial drones, including those used in mapping, inspection, surveying, delivery, and eVTOL applications.

These drones typically require a nominal discharge current of 1-3C, and this battery’s lightweight design, compact size, and extended flight time fully meet those demands.

Battery Specifications:

1. Capacity: 25000mAh
2. Voltage: 22.2V/6S
3. Max Peak Current: 10C
4. Net Weight: 1921g (±20g)
5. Size: 198*77*61mm
6. Discharge Connector Type: XT90-S
7. Balancer Connector Type: G-Tech-7P

Features:

1. Energy Density:

• 330Wh/kg – This is a high energy density, suitable for applications where weight and energy storage are critical.

2. Safety Performance:

• Voltage Range: From 4.2V to 2.75V when SOC is from 100% to 0%. This range suggests good safety management within the battery’s operating limits.

3. Discharge Rate:

• Max Peak Current: 10C (for < 3 seconds)
• These rates indicate the battery’s ability to deliver power quickly and efficiently.

4. Cycle Life:

• Over 500 cycles – The battery maintains its performance over a significant number of charge-discharge cycles.

5. G-Tech Functionality:

• The battery supports the G-Tech function with the Tattu TA1000 1000W charger. It includes automatic current allocation, enhancing charging efficiency and battery management.

Technical Features:

1. Ultra-High Nickel Technology: Likely contributes to higher energy density and overall battery performance.
2. Silicon Carbon Anode: Enhances the battery’s capacity and cycling stability.
3. Coated Diaphragm Technology: Improves safety and performance by enhancing the separator's strength and stability.
4. Solid Electrolyte: Offers improved safety and performance, reducing the risk of leakage and enhancing the battery's life.
