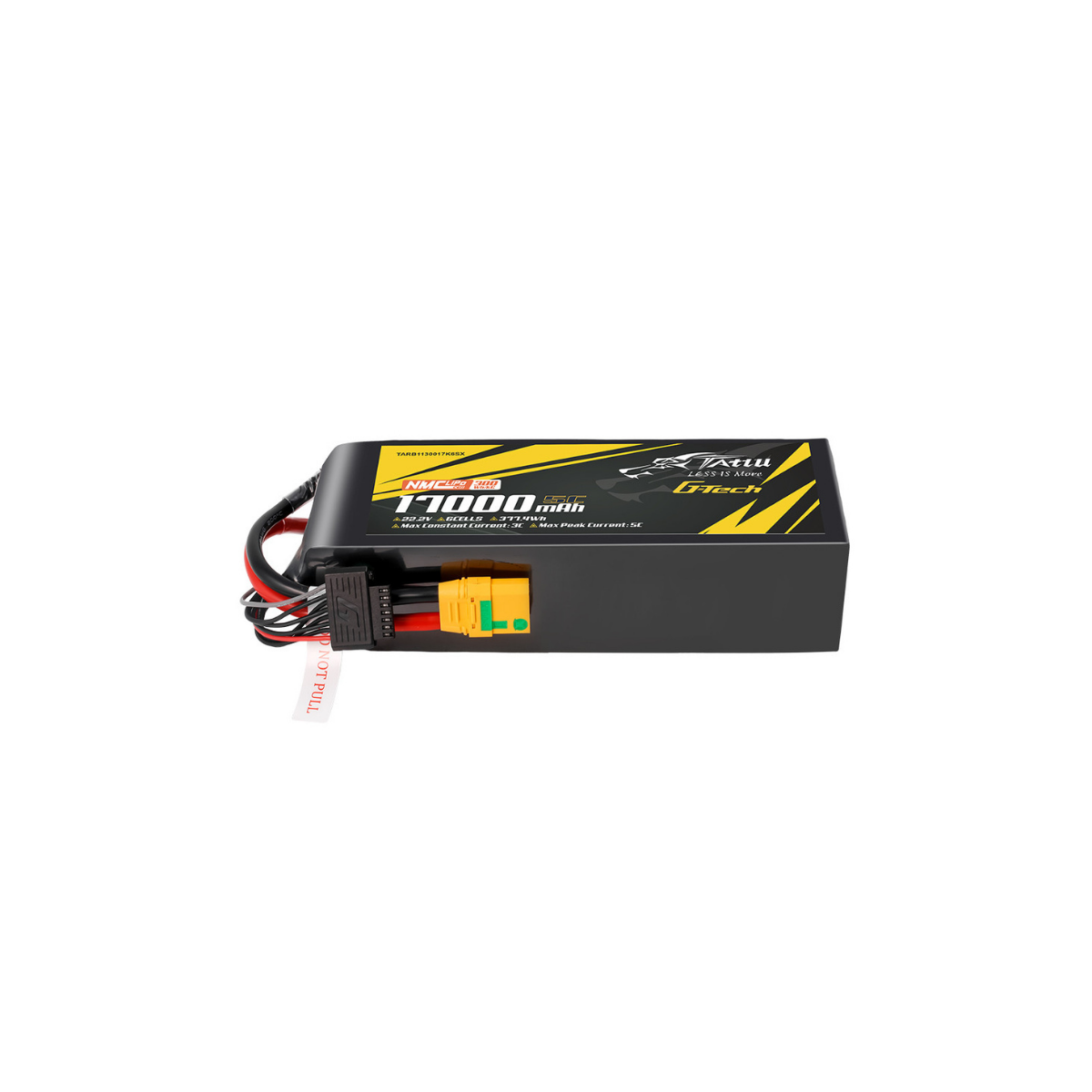

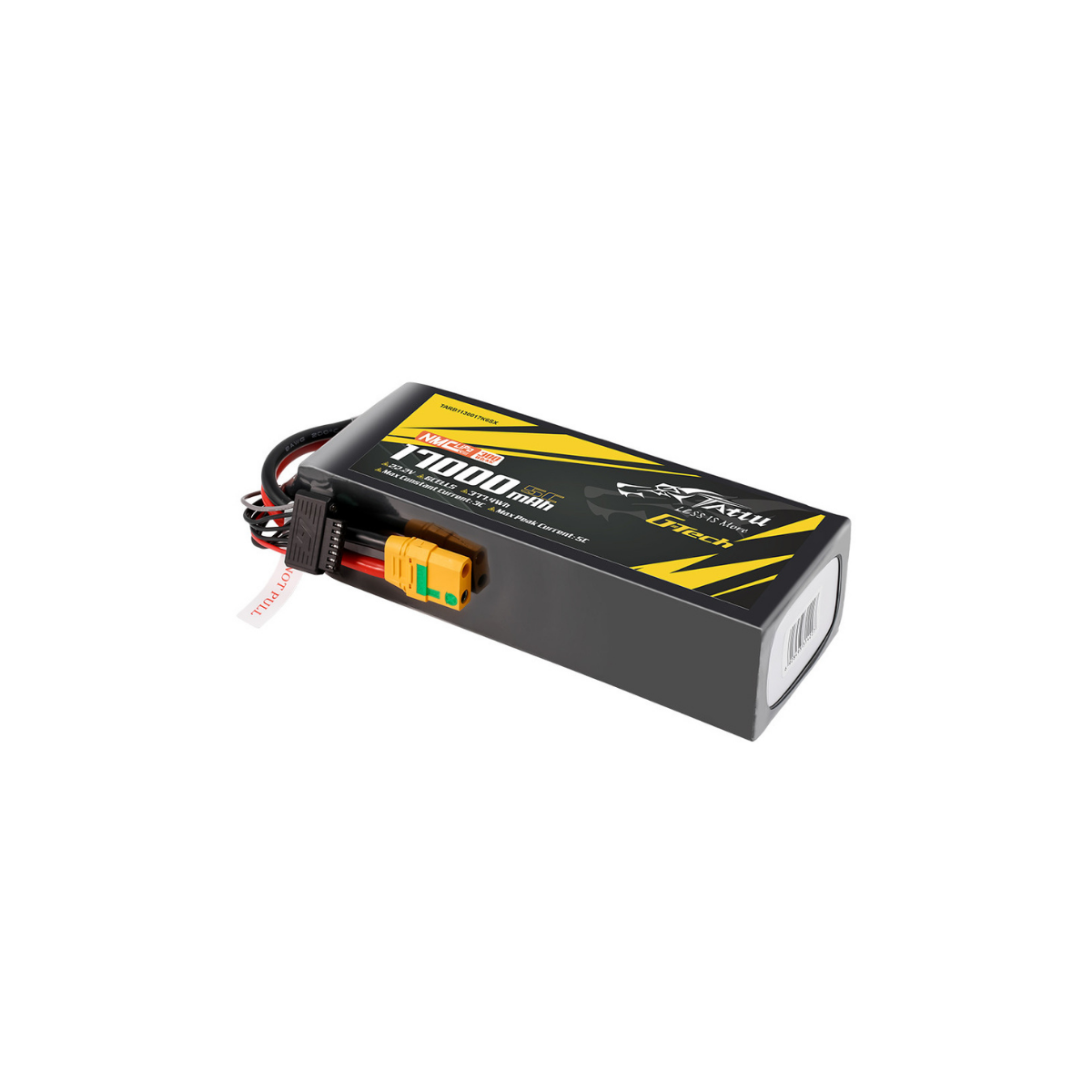

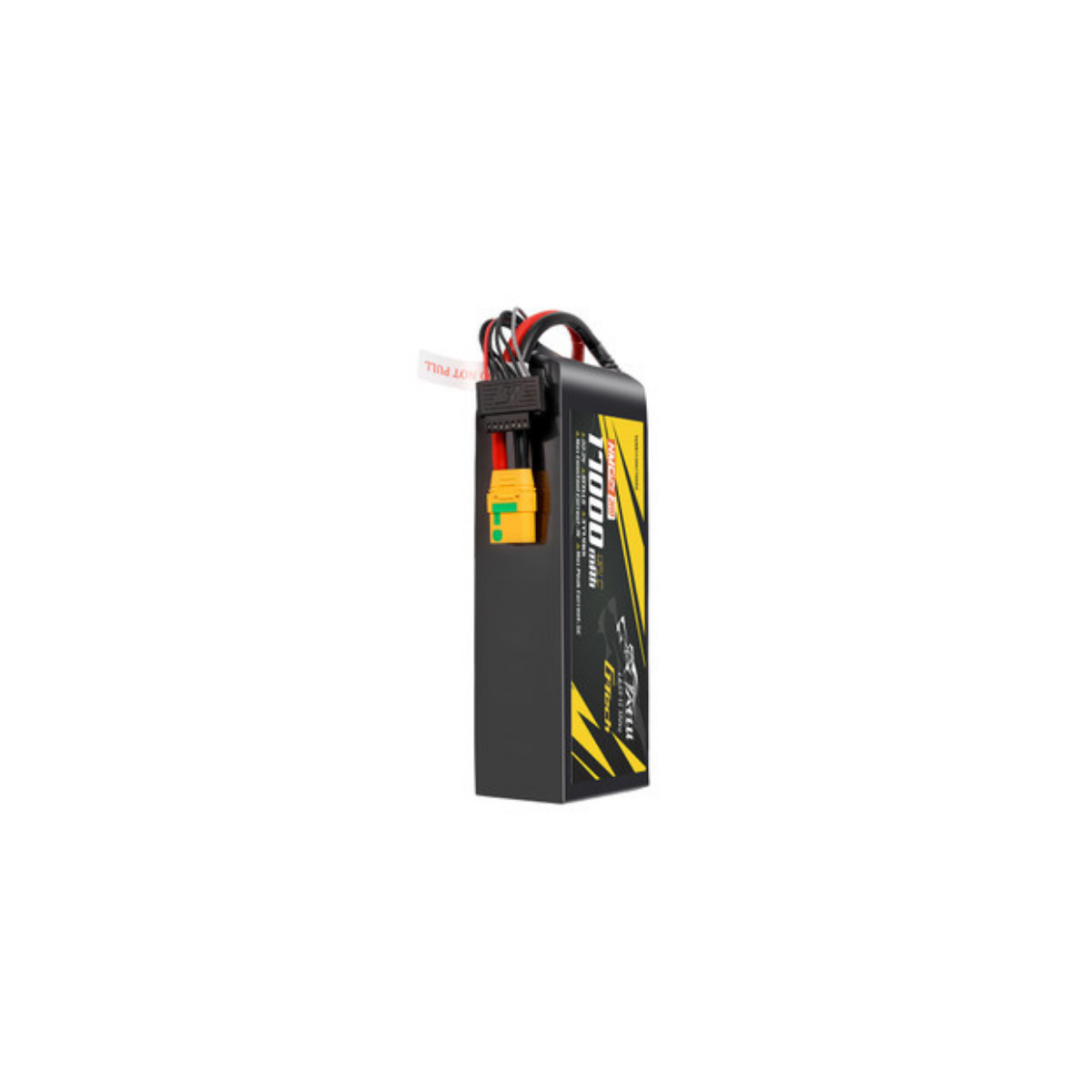

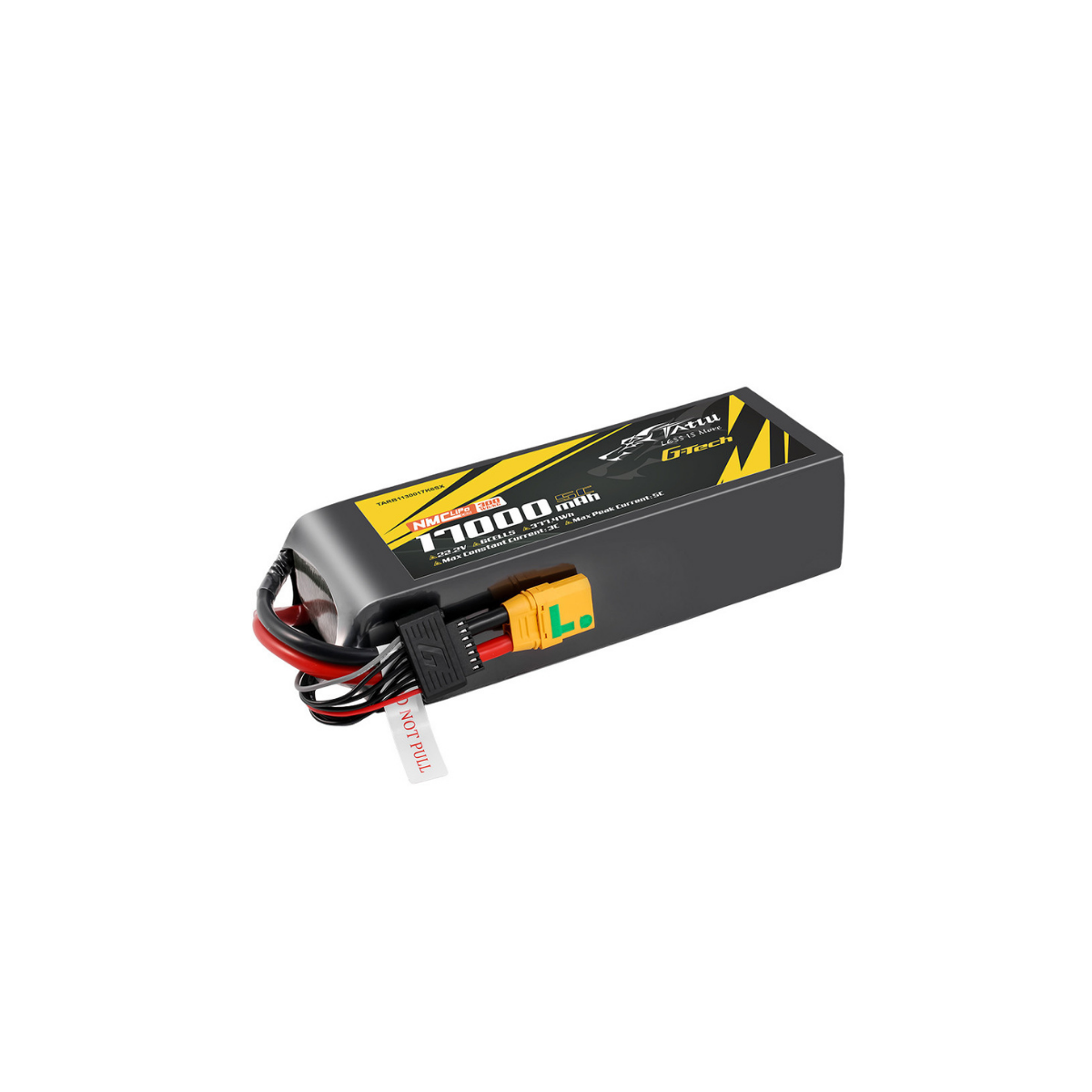

Tattu Semi-solid State 300Wh/kg 17000mAh 10C 22.2V 6S1P G-Tech Lipo Battery Pack with XT90S-F

The Tattu Semi-solid state 300Wh/kg 17000mAh 22.2V 10C 6S1P G-Tech Lipo Battery is a revolutionary semi-solid lithium battery, featuring high energy density and long service life.

Compared with traditional lithium batteries, Tattu Semi-solid State battery has a higher energy and lighter weight, can increase the battery endurance by 30% and cycle life more than of 500 (90% initial capacity). It is an ideal power solution for various industrial drones, including those used in mapping, inspection, surveying, delivery, and eVTOL applications.

These drones typically require a nominal discharge current of 1-3C, and this battery’s lightweight design, compact size, and extended flight time fully meet those demands.

Battery Specifications:

1. Capacity: 17000mAh
2. Voltage: 22.2V/6S
3. Max Peak Current: 10C
4. Net Weight(±20g): 1432g
5. Size: 193*71*50.5mm
6. Discharge Connector Type: XT90S-F
7. Balancer Connector Type: G-Tech-7P
8. Discharge Wire: 8# 150mm
9. Charge Wire: 22# 65mm

Features:

1. Energy Density:

• 300Wh/Kg – This is a high energy density, suitable for applications where weight and energy storage are critical.

2. Safety Performance:

• Voltage Range: From 4.2V to 2.75V when SOC is from 100% to 0%. This range suggests good safety management within the battery’s operating limits.

3. Discharge Rate:

• Max Constant Current: 3C
• Max Peak Current: 5C (for < 3 seconds)
• These rates indicate the battery’s ability to deliver power quickly and efficiently.

4. Cycle Life:

• Over 500 cycles – The battery maintains its performance over a significant number of charge-discharge cycles.

5. G-Tech Functionality:

• The battery supports the G-Tech function with the Tattu TA1000 1000W charger. It includes automatic current allocation, enhancing charging efficiency and battery management.

Technical Features:

1. Ultra-High Nickel Technology: Likely contributes to higher energy density and overall battery performance.
2. Silicon Carbon Anode: Enhances the battery’s capacity and cycling stability.
3. Coated Diaphragm Technology:Improves safety and performance by enhancing the separator's strength and stability.
4. Solid Electrolyte:Offers improved safety and performance, reducing the risk of leakage and enhancing the battery's life.
